Where Are the Ball Joints Located?

Ball joints are a crucial component of a vehicle's suspension system, playing a vital role in ensuring smooth steering and stability while driving. Their strategic placement in a car’s suspension allows for controlled movement and absorbs the stress generated by uneven road surfaces. Understanding where ball joints are located and their function can help drivers maintain their vehicles more effectively and recognize early signs of wear and tear.

What Are Ball Joints?

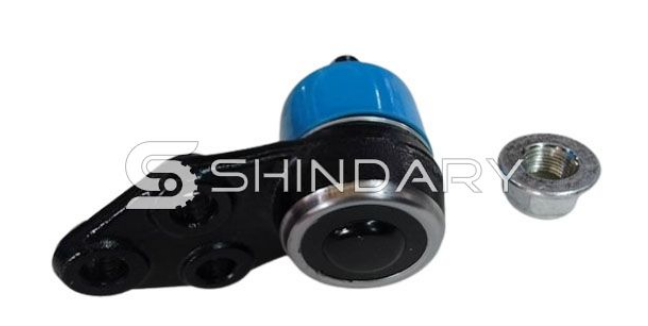

Before pinpointing their location, it’s important to understand what ball joints are. A ball joint is a spherical bearing housed within a socket. This design allows for multi-directional movement, similar to the movement of a human hip joint. Ball joints are pivotal in connecting the vehicle’s control arms to the steering knuckles, enabling both suspension and steering movement.

Location of Ball Joints in a Vehicle

1. Front Suspension System

In most vehicles, ball joints are located within the front suspension system. Depending on the vehicle's design—whether it uses a double wishbone suspension or a MacPherson strut system—the exact configuration may vary:

- Double Wishbone Suspension:

  Vehicles with a double wishbone suspension typically have two ball joints per wheel, referred to as the upper ball joint and lower ball joint. These joints are situated at the connection points between the control arms and the steering knuckle. The lower ball joint is more load-bearing in most cases, while the upper ball joint facilitates additional stability and steering control.

- MacPherson Strut System:

  In vehicles with a MacPherson strut system, there is usually only one lower ball joint per wheel. This joint connects the lower control arm to the steering knuckle, while the strut assembly provides the upper connection point.

2. Rear Suspension System (In Some Vehicles)

While ball joints are predominantly found in the front suspension of most vehicles, some models—particularly those with independent rear suspension—may also have ball joints in the rear suspension system. These ball joints function similarly, connecting the rear control arms to the rear knuckles, ensuring proper alignment and stability.

Why Is Their Location Important?

The location of ball joints makes them integral to both suspension and steering mechanisms. They allow the wheels to pivot and turn smoothly while supporting the vehicle’s weight. Being aware of their location helps drivers understand the importance of regular inspections and maintenance, as worn-out ball joints can compromise safety by causing uneven tire wear, loose steering, or suspension noise.

Signs of Ball Joint Issues

Given their critical role, ball joints are subject to wear over time. Common symptoms of failing ball joints include:

- Clunking noises from the suspension when driving over bumps.

- Uneven tire wear patterns.

- Loose or unresponsive steering.

- Excessive vibration in the front end of the vehicle.

If these symptoms arise, the ball joints—located in the suspension system—should be inspected promptly.

Conclusion

Ball joints are located primarily in the front suspension system, connecting the control arms to the steering knuckles. They may also be present in the rear suspension of certain vehicles. Their placement is vital for steering precision, suspension stability, and overall vehicle safety. Regular inspection and maintenance of ball joints are essential to ensure a smooth and secure driving experience.
